Can Solar Panels Directly Charge A Battery?

Solar panels are becoming a more and more popular way to produce renewable energy.

They help reduce greenhouse gas emissions, but they can save you money on your electricity bill.

But many people still have questions about photovoltaic arrays, one of which is can solar panels directly charge a battery?.

This blog post will explore questions about charging batteries with solar energy and explain how photovoltaic cells work.

Stay tuned!

solar panel and battery

Can Solar Panels Directly Charge A Battery?

In most cases, a battery cannot be directly connected to a solar panel to charge.

Charging a battery requires using a solar charge controller, which changes the output voltage of solar panels to one that is compatible with the battery being charged. It also prevents the battery from being overcharged.

There are two main types of solar charge controllers: those with maximum power point tracking (MPPT) and those without. MPPT controllers are more efficient than those without, but both types will get the job done.

Lead-acid batteries are the most common type of battery used in solar power systems, but other types such as lithium-ion batteries can also be used.

The voltage of lead-acid batteries is typically between 12 and 24 volts, so a solar panel with an output voltage of 18 volts or more is required to charge them.

Car batteries typically have a voltage of 12 volts, so a 12-volt solar panel is all that is needed to charge them.

Most solar panels have an output of around 18 volts, which is enough to charge most lead-acid batteries. However, some panels have higher outputs, such as 24 volts.

In this case, you must use a pulse width modulation (PWM), charge controller, to prevent the battery from being damaged by overcharging.

PWM controllers work by reducing the amount of time the solar panel supplies power to the battery, which prevents it from being overcharged.

How To Use Solar Panels Directly Without Battery?

While most solar panels are designed to work with a battery, it is possible to use them without one.

This can be done by connecting the panels directly to an inverter, which will then convert the DC power generated by the panels into AC power that you can use to power appliances and lights.

However, a few things to keep in mind when using photovoltaic cells without a battery. First, the inverter must be sized appropriately for the array; otherwise, it will not be able to handle the total output of the panels.

Second, since there is no battery backup, the system will only provide power when the sun is shining; as a result, it is essential to have an alternate source of energy available for times when the sun is not out.

Finally, if the grid goes down, the system will also go offline; for this reason, it is vital to have a backup generator on hand in case of an emergency.

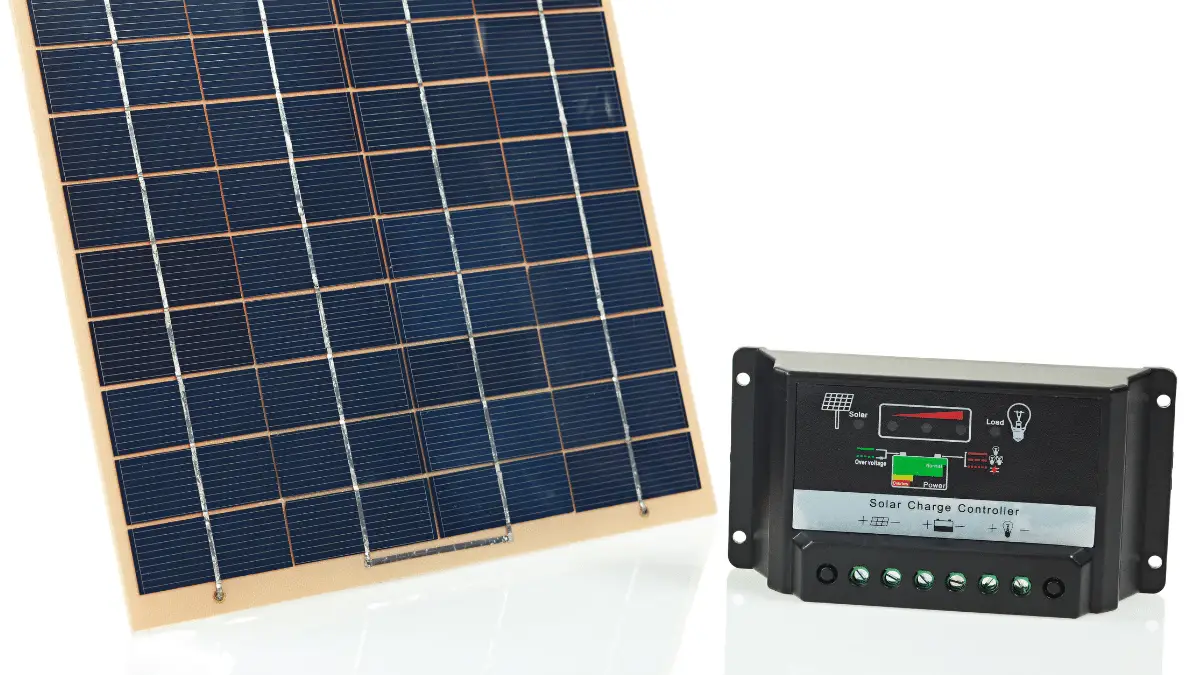

Photovoltaic cells and MPPT controller

Solar Charge Controller

A solar charge controller is a device used to regulate the charging of a lead-acid battery from a solar panel.

The solar panel produces a voltage proportional to the amount of sunlight. This voltage is then used to charge the battery.

The battery voltage is typically much higher than the solar panel voltage, so a solar inverter is used to convert the solar panel voltage to the battery voltage.

The solar charge controller regulates the charging current and voltage from the solar panel to the battery.

The charge controller prevents the battery’s overcharging and protects against the reverse current flow from the battery to the solar panel during periods of low sunlight.

A solar charge controller typically has digital displays showing the solar panel’s current, voltage, wattage output, and the battery’s charging status.

The solar charge controller is an essential component of a solar power system. Without it, the batteries would be damaged by overcharging or reverse current flow.

Solar panels are connected in parallel to increase the wattage output of the system.

When selecting a solar charge controller, you should choose one that can handle the maximum wattage output of your solar panel system.

A good rule of thumb is to choose a charge controller with a capacity twice that of your solar panel system.

For example, if your solar panel system has a maximum output of 1000 watts, you should choose a charge controller with a capacity of 2000 watts.

Maximum Power Point Tracking (MPPT)

MPPT is a charge controller used with solar panels and rechargeable batteries.

MPPT charge controllers are designed to optimize the match between the solar panel and the battery, resulting in more efficient charging and longer battery life.

When used with a lead-acid battery, an MPPT charge controller can increase the charging efficiency by up to 30%.

In addition, MPPT charge controllers are often used with smaller batteries, as they can help prevent overcharging and reduce the risk of damage to the battery.

The VOC, or open-circuit voltage, is measured to find the maximum power point of a solar panel. The VOC is typically around 0.5 to 1 volt higher than the charging voltage of most batteries.

The maximum power point is then determined by multiplying the Voc by the number of solar cells in series.

For example, if a solar panel has a Voc of 5 volts and 20 cells in series, the maximum power point would be 100 watts.

When choosing an MPPT charge controller for your solar system, it is crucial to select one compatible with your solar panel’s voltage and your battery’s voltage.

In addition, you will need to determine the size of the charge controller based on the wattage output of your solar panel and the capacity of your battery.

Finally, you will need to choose a charge controller with a built-in display to monitor the charging process.

Deep Cycle Batteries

Deep cycle batteries are often used in solar panel kits, as they are specifically designed to be regularly discharged and recharged.

When setting up a battery bank, it is essential to use a battery power calculator to determine the correct number of batteries needed to provide sufficient power.

A battery charge controller is also necessary to regulate the charging and discharging of the batteries to prevent overcharging or damaging the batteries.

When connecting the photovoltaic arrays to the batteries, it is essential to check the solar panel VOC to ensure that the panels are compatible with the batteries.

Once everything is connected correctly, the photovoltaic cells will begin generating electricity, which will then use to charge the batteries.

The terminal voltage of the batteries should be monitored while charging to ensure that they are not being overcharged.

Once the batteries are fully charged, the current flowing from the panels will stop, and the voltage will drop.

At this point, it is safe to disconnect the solar panels from the batteries.

The batteries can then be used as a power source for home appliances or other devices.

It is essential to double-check that the battery is fully charged before using it, as an empty battery will be damaged if discharged too low.

Additionally, it is vital to use a battery charger designed for deep cycle batteries, as standard battery chargers can damage deep cycle batteries.

Lead-acid batteries should be charged at a rate of 0.1C to 0.2C, meaning that you should charge a 100 Ah battery with 10 to 20 amps.

For best results, it is recommended to use a three-stage charger to help prolong the battery’s life.

Finally, it is essential to regularly check the water level in lead-acid batteries, as they require occasional topping off.

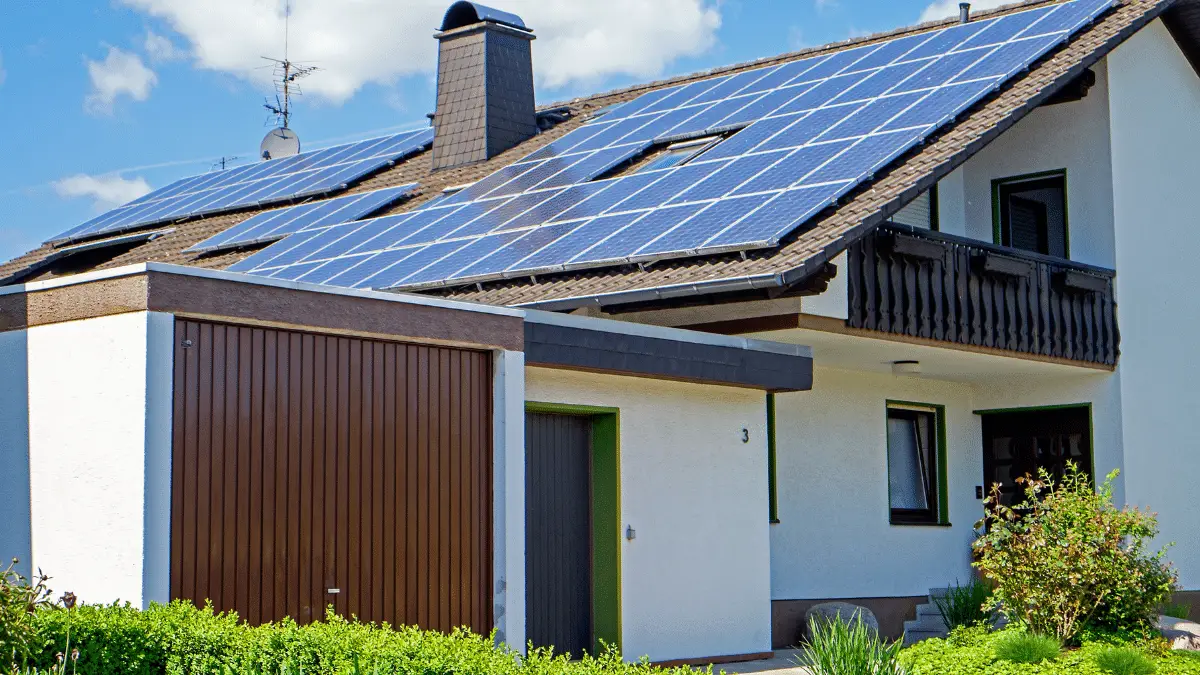

House with solar panels 1

Can Solar Panels Charge Car Batteries?

Yes, photovoltaic cells can be used to charge car batteries. However, a few things to keep in mind when using photovoltaic cells to charge car batteries.

80 and 100-watt solar panels are ideal for quickly recharging big 12-volt or automobile batteries.

Direct sunshine may recharge a 50Ah battery in as little as 12 hours.

However, if the battery is completely discharged, it may take longer to recharge. Additionally, the type of battery will also affect how long it takes to recharge.

For example, lead-acid batteries tend to be less efficient than lithium-ion batteries.

As a result, it’s essential to choose the right solar panel and battery type for your needs.

With the proper setup, photovoltaic arrays can be an efficient way to recharge your car battery.

Can I Connect Solar Panels Directly To An Inverter?

When you are ready to connect your solar panels directly to an inverter, there are a few things you need to take into account.

First, you need to make sure that the inverter is rated for the voltage of your photovoltaic cells.

Most photovoltaic arrays have a standard output of 12 and 24 volts, but some panels may have a higher or lower voltage rating.

If you are not sure what voltage your panels are rated for, you can check the manufacturer’s specifications.

Second, you need to make sure that the inverter can handle the maximum power output of your panels.

Most inverters are rated for a maximum power output of 1000 watts, but some may be able to handle more. But, again, check the manufacturer’s specifications to be sure.

Finally, you need to make sure that the connection between the inverter and the solar panel is secure and that there is no chance of sparks or fire.

Once you have taken all of these factors into account, you are ready to connect your photovoltaic cells directly to an inverter.

What Size Solar Panel To Charge 12V Battery?

When it comes to solar panel size, the rule of thumb is that the larger the panel, the better.

However, this is not always the case, and the right size solar panel for you will ultimately depend on your specific needs.

If you are looking to charge a 12V battery, most individuals will need panels with an output between 100 and 120 watts.

If you live in an area with extreme sunlight, you may be able to get away with a smaller panel.

However, if you want to charge multiple batteries or run appliances off your photovoltaic arrays, you will need a larger panel.

It is always better to err on the side of caution and go with a larger panel, as this will give you more flexibility in the future.

With that said, there are a few things to keep in mind when choosing a solar panel. First, consider the quality of the panel.

A cheaper panel may have a lower output, but it will also be less efficient and more likely to break down over time.

Second, think about the warranty. A good warranty will protect you if something goes wrong with your panel.

Finally, make sure to check the reviews before making your purchase. By doing your research ahead of time, you can be sure to find the best solar panel for your needs.

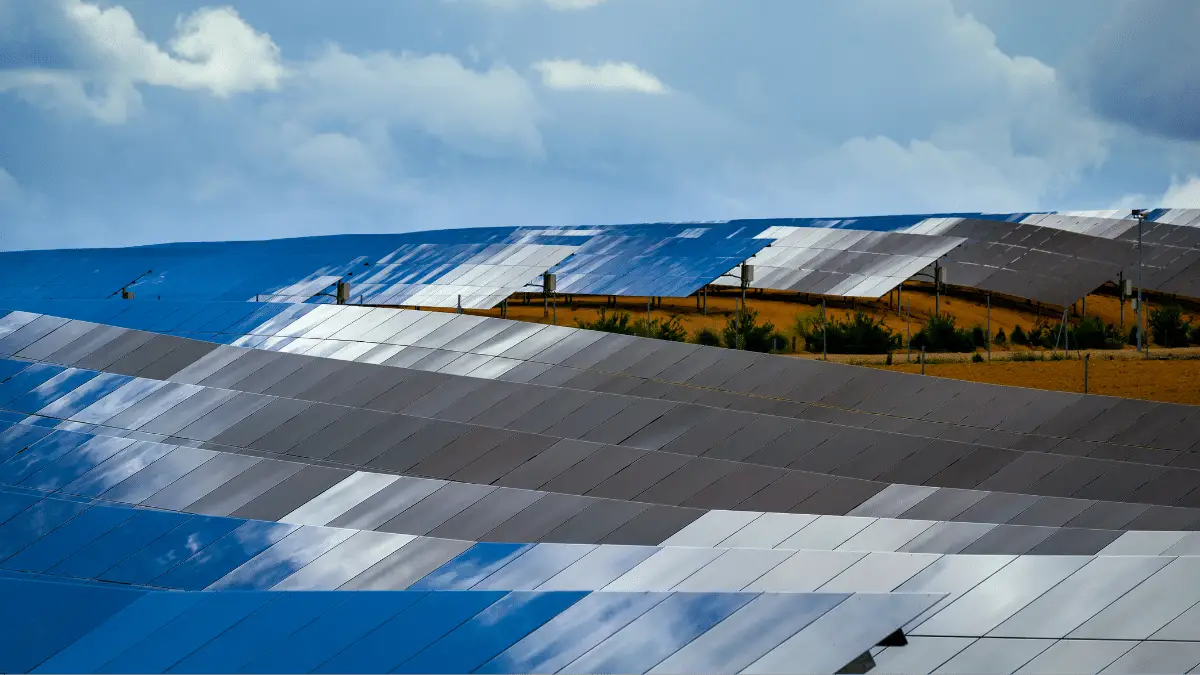

Panels of solar batteries

Solar Battery Charging Problems

One of the most common solar battery charging problems is inadequate charging.

This can be caused by several factors, including low sun exposure, shading, and poor panel placement.

To ensure that your batteries are adequately charged, it is essential to position your solar panels in an area with plenty of direct sunlight.

You should also avoid placing anything that could cast a shadow on the panels, such as trees or buildings.

If you live in an area with long winters and short days, you may need to invest in a supplemental light source to help charge your batteries.

Another common problem is overcharging, damaging the battery, and shortening its lifespan.

It is vital to use a charge controller designed for your specific battery type to prevent this.

Most charge controllers have an automatic shut-off feature that will prevent overcharging.

Finally, another common problem is reverse Polarity. This happens when you connect the + and – together mistakenly.

This will cause sparks and damage the battery, so be careful when connecting the wires.

If you are unsure about the process, you can always consult with a professional electrician.

By following these simple tips, you can keep your solar batteries charged and avoid common problems.

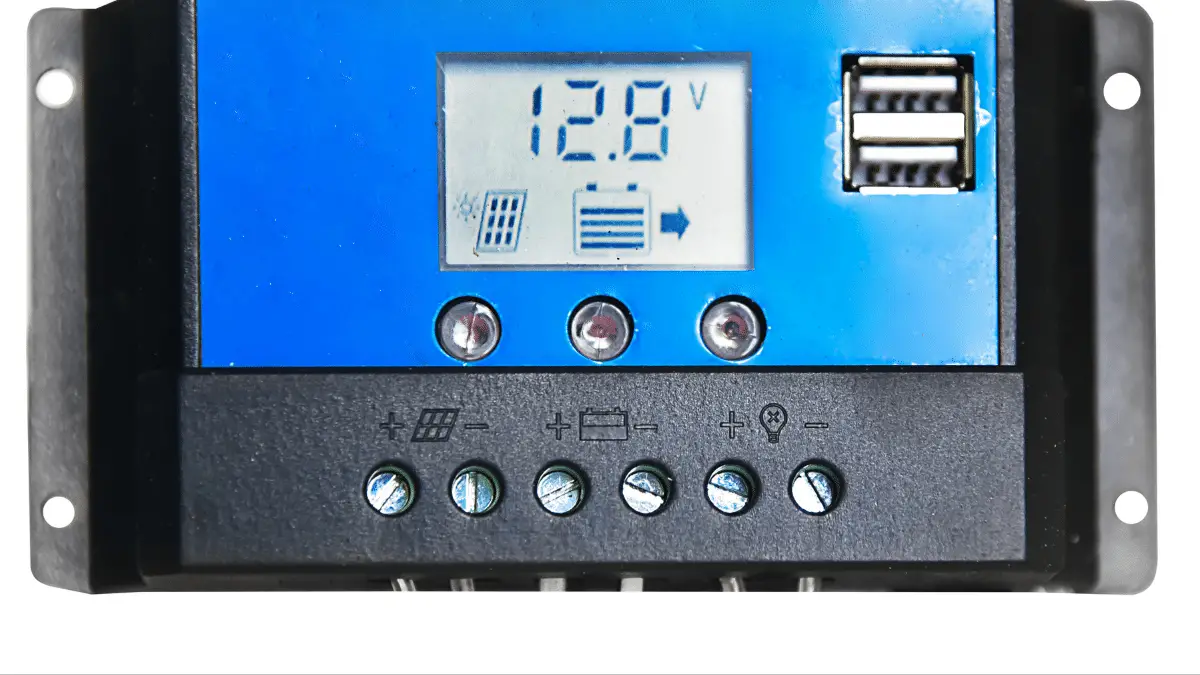

Charge regulator

Final Thoughts

Although it is possible to charge a battery directly from a solar panel, it can damage it without a charge controller.

A charge controller is necessary to protect the battery from overcharging and ensure that it is charged safely.

With a solar panel kit and DC appliances such as LED lights and fans, it is feasible to charge batteries without an inverter.

If you are looking for a way to power your devices using renewable energy, consider using a solar panel with a built-in charge controller.

Thanks for reading!

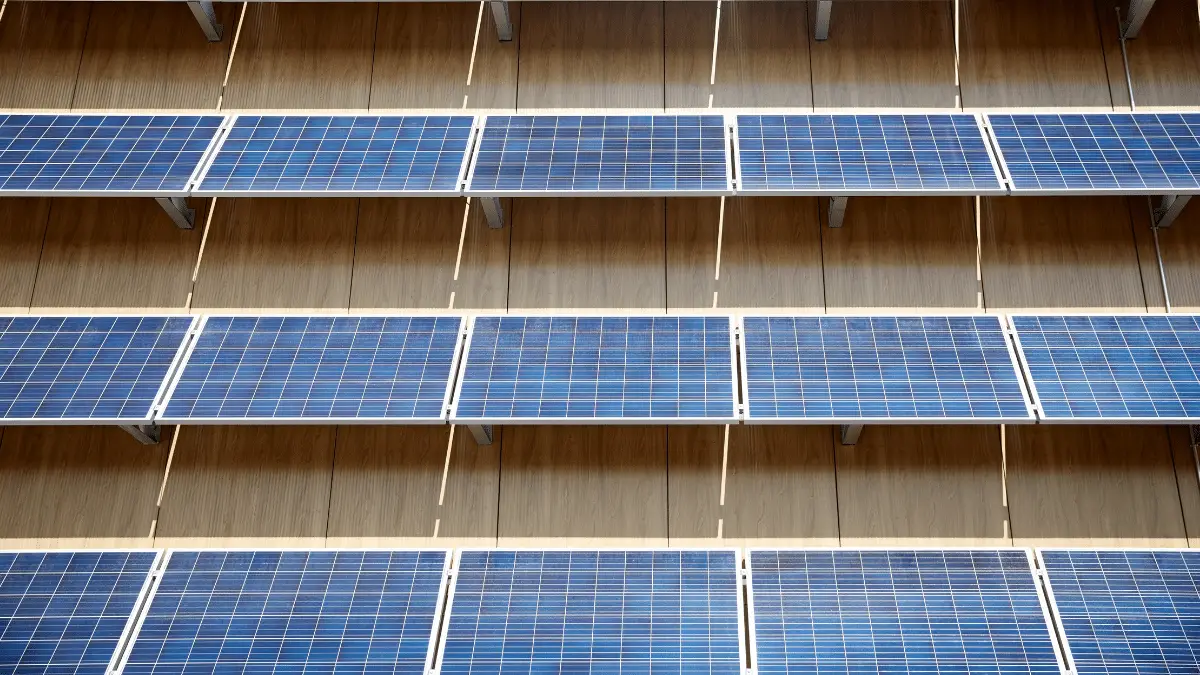

Solar battery panels


How Do You Connect Solar Panels Directly To A 12 Volt Battery?

There are four steps to wiring solar panels directly to a 12-volt battery:

First, you must install solar panels.

Second, the photovoltaic cells must be wired to the charge controller.

Third, you must wire the charge controller to the 12-volt battery.

Finally, you must wire the 12-volt battery to the inverter.

Each of these steps is essential to ensure that the system works correctly and efficiently.

By following these steps carefully, you ensure that your solar panel system will be up and running.

Can Solar Panels Charge Lithium Batteries?

Yes, they can charge lithium batteries, but due to the lithium battery’s charge reaction and other factors, regular charging could cause harm.

Most solar batteries are charged in bulk, acceptance, and float.

There are two steps to charging lithium batteries.

The first step is similar to other batteries’ bulk charging in that a constant voltage is applied until the battery is nearly full.

The charging amperage will be permitted to drain during the second and final charging stages.

A lithium battery can be damaged by charging it in a storage unit, increasing battery discharge, and shortening its lifespan.

Can Photovoltaic Cells Charge Two Batteries In Parallel?

If two batteries are connected in parallel, a single solar panel can charge both of them. However, a charge controller must ensure that the batteries are not overburdened with the current.

Can Solar Batteries Be Charged In A Battery Charger?

Solar batteries can be charged using a battery charger. Therefore, selecting a battery charger suitable for your solar battery is crucial.

Will A Solar Panel Charge A Dead Battery?

Yes, you can use them to charge a dead battery.

Can Light Charge Solar Panel?

Though it may seem counterintuitive, solar panels can be charged with artificial light – including LED bulbs.

For a solar panel to generate electricity, it must be exposed to sunlight, which contains specific frequencies of light waves.

These waves knock electrons loose from their atoms, and it is this flow of electrons that generates an electric current.

Different types of artificial light emit different frequencies of light waves, and some are more similar to sunlight than others.

For example, incandescent bulbs emit light waves similar to sunlight waves, while LED lights emit light waves that are not as similar.

As a result, you’ll need more LED lights to charge a solar panel than if you used incandescent bulbs.

However, it is possible to use artificial light to charge a solar panel – though it will take longer than if you used natural sunlight.

Do Solar Lights Have Batteries?

Yes, batteries are needed to store the energy generated during the day so that you can use them at night or in the event of an emergency.

Additional methods for charging solar lights without sun include a rechargeable battery that can conserve energy from sunshine and release it when needed.

Can Solar Panel Charge Nimh Battery?

It’s nearly impossible to use a solar panel to recharge NiMH batteries. This is because you can’t always rely on the cell voltage to tell you when to stop charging a Ni-MH battery, unlike a lithium-ion or a lead-acid battery, and some Ni-MH batteries can be damaged by overcharging more than others.

How Does Solar Panel Charge Battery?

The battery is recharged with the help of a solar panel, which transforms sunlight into DC current. A solar regulator feeds this DC current to the battery, ensuring that it is recharged correctly and not destroyed.

Can Solar Panels Charge AGM Batteries?

Yes, they can charge an AGM battery.
