The solar industry is increasing, and there are plenty of options for choosing solar panels.
But can you use mono and poly solar panels together?
And which one is right for you?
This blog post will explore the differences between mono and poly solar panels and help you decide which one is right for your needs.
Can You Use Mono And Poly Solar Panels Together?
One of the main decisions you must make when installing solar panels is using monocrystalline or polycrystalline panels.
Monocrystalline panels are typically the better choice if you’re looking to maximize power output and roof space.
However, polycrystalline panels are often less expensive, making them a good option if you’re on a tight budget.
So what happens if you mix and match the two types of panels?
While it is technically possible, it’s not generally recommended.
This is because each type of panel has different electrical characteristics.
As a result, connecting solar panels of different types can adversely affect power output and maximum power point (MPPT).
If you’re interested in combining solar panels, it’s best to consult an electrician specializing in the field.
With their help, you can ensure that your system is correctly configured for maximum output.
Types Of Solar Panels
Solar panels are devices that convert light into electricity. They are made up of solar cells made of silicon crystal wafers.
Solar cells work by absorbing sunlight and converting it into electrical energy.
There are two types of solar panels: monocrystalline and polycrystalline solar panels.
Monocrystalline Solar Panels
Monocrystalline solar panels (MSP) are made from a single giant silicon crystal.
They are well-known for their high efficiency, as they can convert more sunlight into electricity than other types of solar panels.
Monocrystalline panels also have a long lifespan and are resistant to extreme weather conditions.
In addition, they are less likely to experience “hot spots,” which can occur when areas of the panel overheat and cause damage.
As a result, monocrystalline panels are often the preferred choice for solar power systems.
However, they are also more expensive than other solar panels, so weighing the pros and cons is essential before deciding.
Applications
- Popular among solar rooftop systems, monocrystalline solar panels are typically utilized for large-scale industrial, commercial, or residential installations.
- Depending on the size of the solar panels, you can use them for small-scale (less than 25 Watts) applications like charging batteries, cameras, and other electronic devices.
- You can utilize larger solar panels (greater than 40 Watts) to power lights, microwaves, refrigerators, and whole houses.
Advantages
- Monocrystalline panels are head and shoulders above the competition regarding PV efficiency.
- Since they take up so little floor space, they’re the most cost-effective option.
- The life expectancy of monocrystalline solar panels is higher than that of polycrystalline ones, and they often outperform warranties by a wide margin.
- They are better suited to hot and humid environments.
- These solar panels are composed of the best silicon available on the market.
Disadvantages
- Compared to polycrystalline solar panels, monocrystalline solar panels are more expensive.
- A circuit breakdown may occur if a monocrystalline solar panel is coated in dirt, snow, or shade.
- In hot climates, monocrystalline cells perform better.

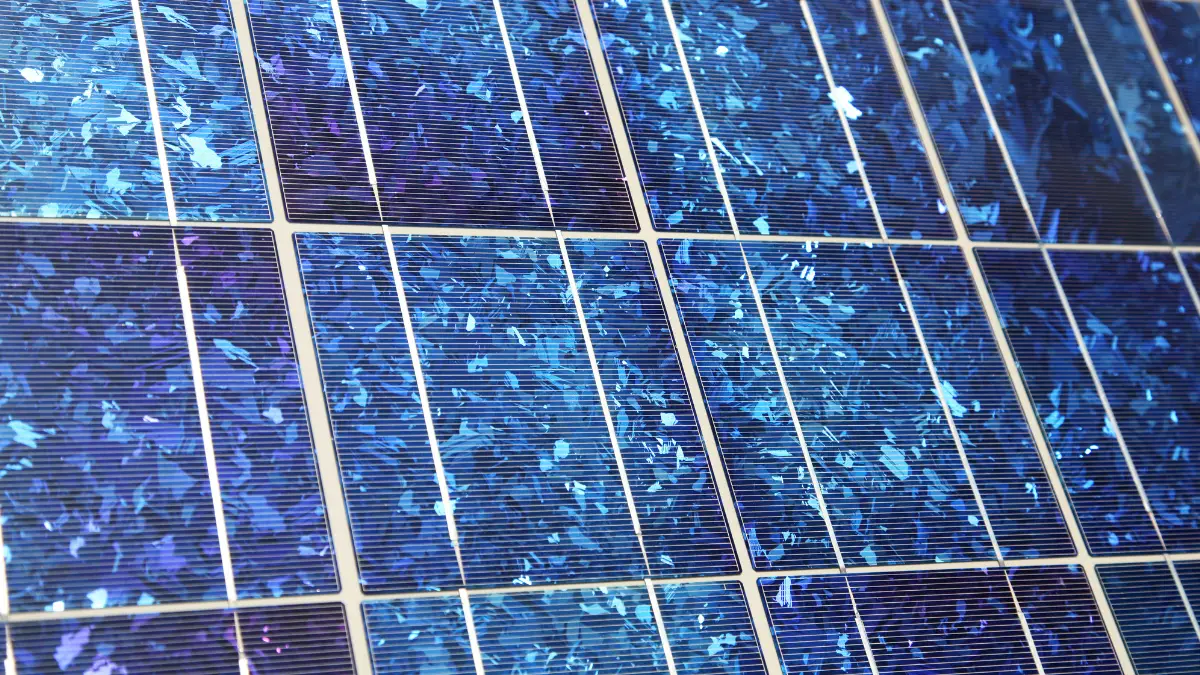

Polycrystalline Solar Panels
Polycrystalline solar panels (PSP) are made from silicon that has been melted and cast into ingots.
The ingots are cut into wafers, the basis for the individual solar cells.
One of the main advantages of polycrystalline panels is that they are less expensive to produce than monocrystalline panels.
In addition, polycrystalline panels can be made using various manufacturing methods, giving manufacturers more flexibility in production.
However, polycrystalline panels are not as efficient as monocrystalline panels and tend to degrade more quickly over time.
As a result, polycrystalline cells are typically used in applications where cost is a significant consideration.
Applications
- Polycrystalline solar panels can be used in small and large-scale installations with a wide range of power wattages.
- Polycrystalline solar panels are also utilized in substantial solar farms, roof-mounted arrays, traffic lights, residences, etc. Again, this is because they are cheaper and more environmentally beneficial.
Advantages
- Polycrystalline solar panels are less expensive and easier to produce than MSPs.
- As a general rule, poly panels are less tolerant of high temperatures.
- When these panels are made, there is less silicon waste.
Disadvantages
- The efficiency of PSPs is lower, at roughly 13-16 percent.
- A larger surface area and more room are required since they are less space-efficient.
- Silicon purity is lower in these solar panels, making them less consistent and less appealing to the eye.
What Is the Main The Difference Between A Mono And A Poly Photovoltaic Cell?
The primary distinction between the two systems is the crystallinity of the PV cells.
MSPs contain solar cells built from a single silicon crystal, whereas PSPs have solar cells created from numerous fragments of silicon that have been melted together.
Mono Vs. Poly PV Price
Monocrystalline solar panels have an average cost per watt of $1.50 to $1.50.
It costs between $250 and $375 for a basic 250-watt panel.
You can purchase a complete monocrystalline system for $6,000 and $9,000.
For a 250-watt polycrystalline PV cell, you may expect to pay between $225 and $250, or $0.90 to $1 per watt.
Consequently, the polycrystalline panels have an average system cost of between $5,000 and $6,000.
Due to making single crystalline ingots, MSPs are more expensive.
Charge Controller
Charge controllers regulate the flow of electricity from a solar panel to a battery.
They are an essential part of any solar power system, as they help ensure that the batteries are not overcharged and damaged.
There are two main types of charge controllers: linear and maximum power point tracking (MPPT).
Linear charge controllers are the simplest and most common type.
They work by regulating the voltage from the solar panel to the battery, and they are typically used in systems with lower power requirements.
An MPPT charge controller is more complex and costly, but they are much more efficient than linear charge controllers.
They work by tracking the maximum power point of the solar panel and then regulating the current to the battery.
This results in more power being stored in the battery, which means you can use the solar panel at its fullest potential.
MPPT charge controllers are typically used in systems with higher power requirements.
When choosing a charge regulator, it is crucial to consider the solar panel’s electrical characteristics and the system’s maximum output.
The voltage rating of the charge regulator must be higher than the highest voltage produced by the solar panel, and the output current must be high enough to accommodate the system’s maximum power output.
It is also essential to consider the size of the charge regulator.
Charge controllers come in various sizes, and choosing a size that can handle the system’s power output is vital.
Another important consideration is the type of inverter used in the system.
Some charge controllers are only compatible with certain types of inverters, so it is essential to check compatibility before purchasing.
Finally, it is essential to consider the wiring configuration of the system.
Charge controllers can be configured for parallel or series wiring, and choosing a configuration compatible with the inverter and the solar panels is essential.
Connecting Multiple Solar Panels To One Charge Regulator
You can connect multiple solar panels to increase the system’s power output.
The most important thing to consider when doing this is the wattage rating of the charge regulator.
The charge regulator must be able to handle the increased power output of the system. Another consideration is the wiring configuration of the system.
You must ensure that the solar panels are wired in the same configuration as the battery regulator.
Finally, you will need to ensure that the solar panels are compatible with the battery regulator.
Some charge controllers are only compatible with certain types of solar panels.
Connecting Multiple Portable Solar Panels
Two main ways to connect multiple portable solar panels are in series or parallel.
Connecting the panels in series means that the system’s voltage will be increased, but the current will stay the same.
This is the best way to connect panels to increase the system’s power output.
Connecting the panels in parallel means that the system’s voltage will stay the same, but the current will be increased.
This is the best way to connect panels if you want to increase the current that the system can produce.
It is important to note that you can only connect panels of the same wattage in series.
If you try to connect panels of different wattages in series, the system will not work correctly.
When connecting multiple portable solar panels, it is essential to consider the wattage rating of the battery regulator.
The charge regulator must be able to handle the increased power output of the system. Another consideration is the wiring configuration of the system.
You must ensure that the solar panels are wired in the same configuration as the charge controller. Finally, you will need to ensure that the solar panels are compatible with the charge controller.
Some charge controllers are only compatible with certain types of solar panels.
Can Solar Panels Be Connected In Parallel?
Yes, you can connect solar panels in parallel.
The main advantage of doing this is that it increases the current that the system can produce.
Another advantage is that it allows you to connect panels of different wattages.
However, there are some disadvantages to connecting solar panels in parallel.
The first disadvantage is that it can be challenging to troubleshoot the system if there is a problem.
The second disadvantage is that the system may not work correctly if one of the panels is not functioning correctly.
Solar Panels Installation – Angle To The Sun
The sun’s angle relative to a solar panel affects its power output.
In the morning and evening, when the sun is low in the sky, the panels will produce less power than when the sun is directly overhead.
For this reason, it’s essential to position your panels so that they will receive direct sunlight throughout the day.
When choosing a location for your panels, pay attention to the latitude of your site and the local terrain.
In general, south-facing slopes will provide the best exposure to the sun.
However, depending on your location, you may also need to account for trees, buildings, or other obstructions that could block sunlight.
By carefully positioning your panels, you can maximize their power output and ensure that your home or business gets the most out of its investment in renewable energy.
Mono Vs. Poly Solar Panels Efficiency
Polycrystalline panels typically have a lower efficiency of between 13 and 16 percent. Therefore, it is possible to expect higher efficiency from monocrystalline panels, ranging from 15% to 20%.
If you mix a mono rated at 21 percent with a poly rated at 16 percent, the array will not attain its maximum output.
The best results are achieved by pairing solar panels with identical ratings.
Combining it with a solar panel with poor efficiency may bring down the entire solar cell.
How long before crystalline silicon loses its sway?
The production of crystalline silicon solar cells currently dominates the market for photovoltaic power. Still, much research is underway on thin-film solar cells, which could eventually challenge crystalline silicon’s dominance.
Thin-film solar cells are made by depositing one or more layers of semiconductor material onto a substrate.
One advantage of thin-film cells is that they can be made using a much more comprehensive range of materials than crystalline silicon cells.
This means that, in theory, they could be cheaper to produce and more efficient.
However, thin-film solar cell technology is still in its early stages, and it remains to be seen whether it will be able to compete with crystalline silicon in the long run.
Match Solar Panels To Inverter
When shopping for solar panels and an inverter for your home, it’s essential to ensure that the two products are compatible.
The solar panels you purchase should have a DC output rating within the range that the inverter can handle.
Most home solar panel kits will come with an inverter sized appropriately for the panels, but double-checking before buying is still a good idea.
Suppose you have your heart set on a particular inverter model. In that case, you can use the search filters on the EnergySage Solar Marketplace to find solar panels compatible with that inverter.
Start by selecting the DC input range your inverter can handle, then narrow down your options based on other essential factors, such as price, efficiency, and brand.
When looking at different solar panels, you’ll notice that they have a maximum power output rating in watts (W).
The inverter you choose should be able to handle the maximum power output of the solar panel or panels you’re planning to install.
In Conclusion
A combination of monocrystalline and polycrystalline solar panels will work together as long as their electrical parameters are similar.
However, it is advisable to wire mono and poly solar panels in separate strings for optimal output.
Comparing mono solar panels and poly solar panels saves money on electricity.
It boils down to your desire, space constraints, and the most advantageous financing plan.
Have you considered using a mix of mono and poly solar panels on your next project?
FAQs
How To Determine Poly And Mono Solar Panels?
In terms of appearance, MSPs tend to be black, but polycrystalline panels may have a blue hue.
Can You Hook Up Two Solar Panels To One Battery?
To link them in parallel, the power management system must be capable of handling the total input power.
Can I Connect 2 Solar Panels With Different Watts?
If each solar panel’s voltage, wattage, and amps are adequately examined for each other’s electrical properties, mixing solar panels is not strictly prohibited. Wiring two panels from different manufacturers is not a problem if you intend to do so.
What Happens When Solar Panels Are Connected In Parallel?
The overall output current remains the same when solar panels are connected in parallel, but the total current output becomes the total of the amperage of each panel. Parallel wiring has the effect of keeping the voltage constant while increasing the amperage simultaneously.
How Many Solar Panels Can I Connect To A Charge Controller?
Most 48-volt solar charge controllers have a maximum voltage (Voc) of 150V, which allows up to three solar panels to be connected in series.
This can vary depending on the make and model of the controller, so it is always best to check the specifications before making any connections.
Once the Voc has been exceeded, the controller will no longer be able to effectively regulate the flow of power, which could damage both the controller and the solar panels.
In addition, it is essential to ensure that the connected panels’ total wattage does not exceed the rated capacity of the controller.
By following these simple guidelines, you can ensure that your solar panel system operates safely and efficiently.
